Not working "Trigger the state transition once all separate assignments..."

By default the conditions for triggering state transitions are checked once per hour and the transfer is triggered if the requirements are met. The interval can also be adjusted through a registry setting if needed (restart the server instance after modifying the registry):

Key path: HKEY_LOCAL_MACHINE\SOFTWARE\Motive\M-Files\\Server\MFServer
Value name: StateChangerSleepingIntervalInMinutes
Value type: DWORD
Value data: default 60, minimum 1

Thanks

I have changed the interval, but the issue is still there.

I did a sort of experiments and figured out:

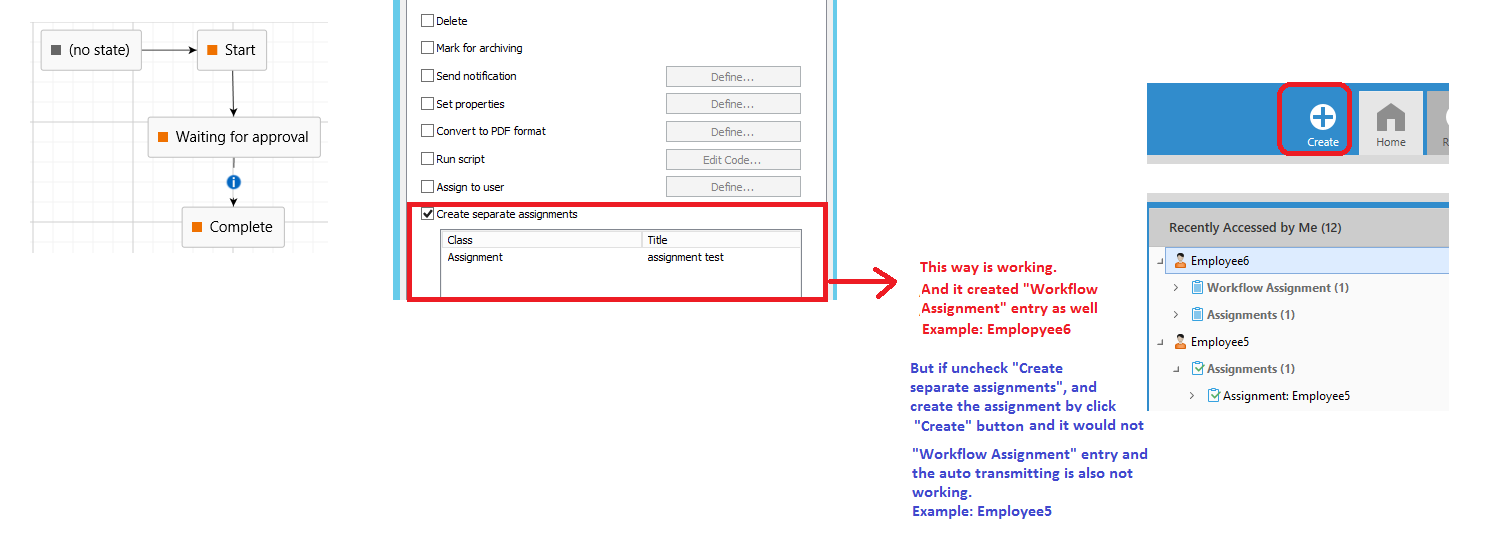

1. If the assignment is created from workflow "Create separate assignments", then the state would automatically transmit to next once it is approved. I notice there is an entry called "Workflow Assignments" in this way.

2. However, if the assignment is added manually, then the state would not transmit after it is approved.

Could you please advice what is the difference and how should I make the second way working as well?



Thanks
Bin

Sounds like you in the second instance are creating an assignment manually without involving the workflow. In that case, of course, the workflow is not involved and cannot handle state transition etc. You should add the workflow to the document rather than add an assignment.

Thanks bright，

I do set the employee to workflow before manually add the assignment.

Any other cause.

Thanks

Figured out my code below had a wrong sequence, once swap it and the automatic transmission works.

// Relate it to the original object via the "workflow assignment" property.
	env.ObjVerEx.AddLookup((int) MFBuiltInPropertyDef.MFBuiltInPropertyDefWorkflowAssignment, // = 79
		new ObjVer()
		{
			Type = (int) MFBuiltInObjectType.MFBuiltInObjectTypeAssignment, // = 10
			ID = assignmentId
		});

	// Ensure that the audit is correct.
	env.ObjVerEx.SetModifiedBy(env.CurrentUserID);
	env.ObjVerEx.SaveProperties();

Should swap the last two lines sequence as below

env.ObjVerEx.SaveProperties();
// Ensure that the audit is correct.
env.ObjVerEx.SetModifiedBy(env.CurrentUserID);
